Fovea Stacking: Imaging with Dynamic Localized Aberration Correction

Shi Mao, Yogeshwar Nath Mishra, Wolfgang Heidrich
King Abdullah University of Science and Technology
ACM Trans. Graphics (Proc. SIGGRAPH Asia), 2025
Paper Supplementary arXiv

Fovea Stacking is a novel imaging paradigm that dynamically controls a deformable phase plate (DPP) to compensate for lens aberration locally (analogous to the eye's fovea), and thus produce regionally corrected images, which can be stacked to produce an aberration-free composite image.

Abstract

The desire for cameras with smaller form factors has recently lead to a push for exploring computational imaging systems with reduced optical complexity such as a smaller number of lens elements. Unfortunately such simplified optical systems usually suffer from severe aberrations, especially in off-axis regions, which can be difficult to correct purely in software.
In this paper we introduce Fovea Stacking , a new type of imaging system that utilizes emerging dynamic optical components called deformable phase plates (DPPs) for localized aberration correction anywhere on the image sensor. By optimizing DPP deformations through a differentiable optical model, off-axis aberrations are corrected locally, producing a foveated image with enhanced sharpness at the fixation point - analogous to the eye's fovea. Stacking multiple such foveated images, each with a different fixation point, yields a composite image free from aberrations. To efficiently cover the entire field of view, we propose joint optimization of DPP deformations under imaging budget constraints. Due to the DPP device's non-linear behavior, we introduce a neural network-based control model for improved alignment between simulation-hardware performance.

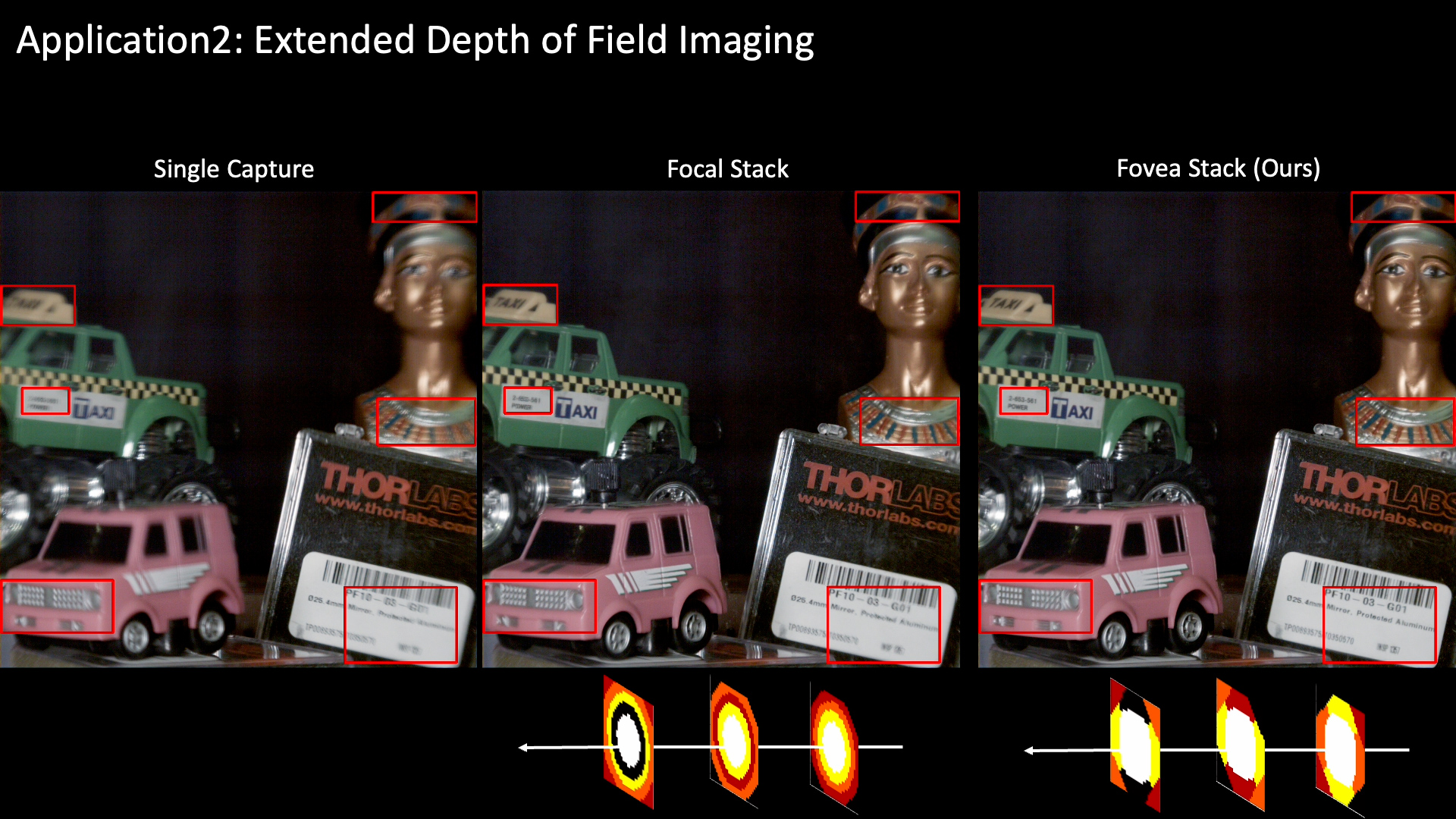

We further demonstrated that for extended depth-of-field imaging, fovea stacking outperforms traditional focus stacking in image quality. By integrating object detection or eye-tracking, the system can dynamically adjust the lens to track the object of interest-enabling real-time foveated video suitable for downstream applications such as surveillance or foveated virtual reality displays

Method Overview

First research result visualization

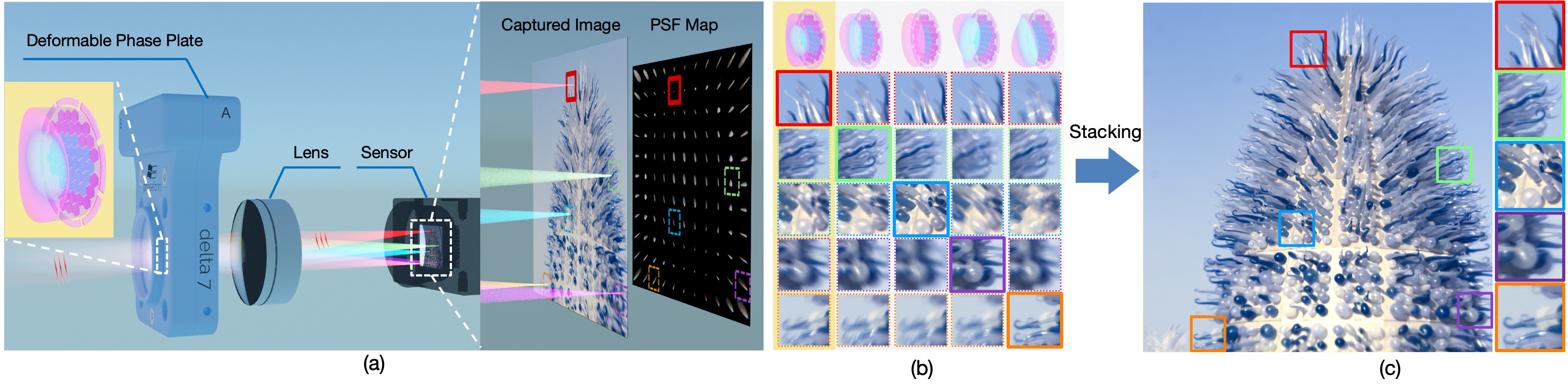

Fovea Stacking is a novel computational camera paradigm aimed at simplifying (and ultimately miniaturizing) camera optics. (a) The optical system consists of an achromatic doublet lens, which is highly aberrated, and a refractive deformable phase plate (DPP), which can be used to correct the aberrations for a local region of interest (the fovea). While this optical system cannot simultaneously correct all aberrations across the entire image, the DPP is capable of dynamically moving the fovea anywhere in the image. For example, the DPP deformation in (a) corrects aberrations along the red beam for the corresponding red box fovea on the sensor. (b) shows magnified crops of foveated images captured with different DPP deformations. The left column shows the image from (a), the other columns have the fovea moved to the other respective boxes. (c) By stacking up the sharpest regions from different foveated images (i.e. a fovea stack), an un-aberrated all-in-focus image can be recovered. Other applications such as object tracking and depth-dependent focusing are discussed in the text.

Experiments

BibTeX

@article{mao2025fovea,
      title={Fovea Stacking: Imaging with Dynamic Localized Aberration Correction},
      author={Mao, Shi and Mishra, Yogeshwar and Heidrich, Wolfgang},
      journal={arXiv preprint arXiv:2506.00716},
      year={2025}
}
